Location: Product=>Audio Guide System With Tour Guide Function=>AG-600SR |
Audio Guide System with Tour Guide Function AG-600SR |
Wireless Transmitter Audio Guide |
G-MP3T AG-600SR |
| ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ |
| ● Built-in wireless tour guide module,not only a audio guide system but also a wireless tour guide system,to support both |
| individual and group tours. |
| ● Wireless transmitter can remote control audio files playback,language switching,and shutdown of audio guide device. |
| ● UHF band PLL synthesized design of tour guide module. |
| ● High performance double-IF circuit design of tour guide module. |
| ● Excellent anti-interference performance of tour guide module to ensure that multiple systems can be used simultaneously. |
| ● SOOLAI's original "Digital Pilotone & Noise Lock" design of tour guide module. |
| ● 31-level digital volume control of tour guide module which can be adjusted independently. |
| ● Extremely high reception sensitivity of tour guide module, it can work more than 200m in open area. |
| ● With user data statistics and analysis function,analyze the data of language,month,week,visiting time,scenic spot |
| ranking,etc. |
| ● Yellow and blue dual color OLED screen, 128*64 dot matrix. |
| ● Welcome screen can be customized, which can be displayed as logo or text. |
| ● Support audio files of MP3 format, 8-48KHz sample rate, 8-320kbps bit rate and VBR |
| ● Support 99 different languages,4096 audio files in each language.Language can be switched manually or wirelessly |
| triggered. |
| ● Object name display, support 173 languages. |
| ● Support numeric keypad playback. |

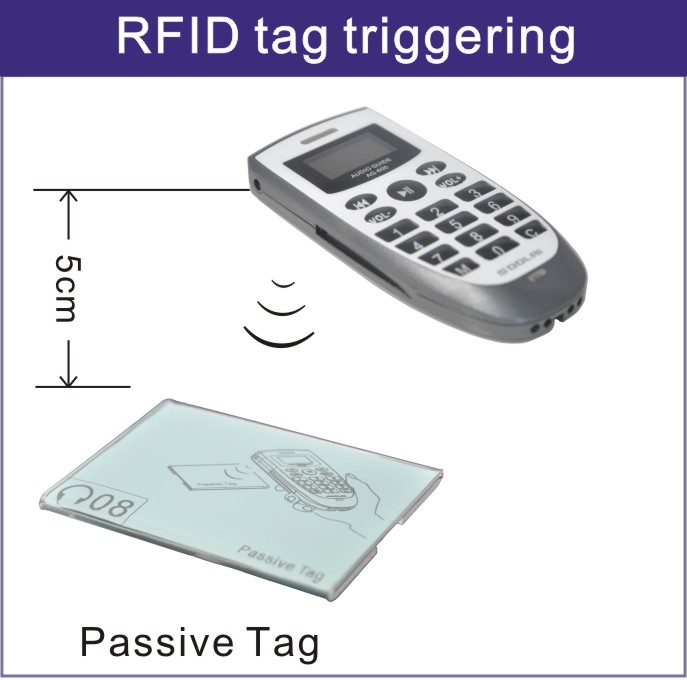

| ● Support RFID tag triggering playback within 0～5cm. |
| ● Support infrared to trigger playback within 0～10m. |
| ● Support RF signal to trigger playback within 0～100m. |
| ● 32-level digital volume control of audio guide,and the maximum output volume can be locked. |
| ● With play restriction and play times statistics functions, it is convenient for rental management. |
| ● The latest three triggered audio files can be replayed. |
| ● Play background music automatically when trigger playing ended. |
| ● Can vibrate and buzz when triggering. |
| ● With anti-theft alarm function. |
| ● With Audio-video synchronization function, the visitors will hear the audio that is synchronized with the currently playing |
| video screen in their needed language. |
| ● Battery level of RF trigger and infrared trigger can be shown on audio guide. |
| ● The charger adopts 2U rack design, it is compatible with 19 inch standard server network cabinet assembly. |
| ● The parameters of audio guide is set by a special wireless decoder to avoid the visitors to change it. |
| ● A special uploader can be match used with uploading software is convenient for updating the audio files of multiple audio |
| guide devices simultaneously. |
| ● Extra audio files control function. To achieve more functional application through editing the simple command for audio |
| files. |
| ● One audio guide can store 224 visitors' data,there is no need to export the data every day,data can be exported once |
| every 2-4 months. |
| ● Import the user data of audio guide to computer through wireless communication. |
| ● Audio guide can be charged while exporting user data. |
| ● User data export master can automatically connect to 256 pcs of user data export charger, user data data of 3072 pcs of |
| audio guide can be exported,each audio guide can store 224 visitors' data, it can import more than 680,000 visitors' data |
| once. |
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ |
| |
| ◆ System Composition |
|
| |
| 1.The voice of interpreter is transmitted through wireless transmitter to the audio guide device. |
| 2.The built-in MP3 files in wireless transmitter can be played manually and sent to audio guide. |
| 3.Wireless tranmitter has remote control function,it can remote control the playback,language switching,and |
| shutdown of the audio guide device. |
| 4.Audio guide has built-in MP3 files,it can manually play through keypad or trigger automatically play by |
| Passive RFID tag,Infrared trigger and RF trigger. |
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ |
| |
| ◆ Application of Wireless Transmitter |
|
| |
Wireless transmitter can play built-in MP3 files |
|
Wireless transmitter can transmit remote control |
|
| |
while speaking,or MP3 Audio will be paused |
|
commands to control audio guide to perform |
|
| |
automatically when interpreter is speaking. |
|
corresponding operations. |
|
| |
|
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ |
| |
| ◆ Triggering Applicaiton of Audio Guide |
| |
 |
|
|
|
| |
Passive Tag L45A |
Infrared Trigger IRT-6 |
RFID Trigger RFT-6 |
|
| |
Activate range:0～5cm |
Activate range:0～10m,4 steps adj |
Activate range:0～100m,16 steps adj |
|
| |
NO power supply |
Battery:AA alkaline battery 1.5V*2 |
Battery:AA alkaline battery 1.5V*2 |
|
| |
|
Battery life:>15 months (measured) |
Battery life:>3 years (measured) |
|
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ |
| |
| ◆ Audio-Video SYNC Application of Audio Guide |
| |
|
|
 |
|
| Direct trigger: |
| When visitors bringing audio guide |
| into trigger area,audio guide can |
| automatically play the audio that is |
| synchronized the video screen. |
| Indirect trigger: |
| When visitors bringing audio guide |
| into trigger area,audio guide must |
| trigger the MP3 file of current playing |
| video first,then can automatically |
| play the audio that is synchronized |
| with the video screen. |
| |
 |
| Audio guide can switch audio-video |
| sync channel automatically to solve |
| frequency interference problem. |
|
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ |
| |
| ◆ User Data Exporting and Charging |
|
| |
1. Import the user data of audio guide to computer through wireless communication. |
|
| |
2. Export the user data while charging, audio guide device automatically turn on when exporting the user data, and |
|
| |
automatically turn off after exporting completed. |
|
| |
3.UD-Master can automatically connected to 256 pcs of UD-12B, user data of 3072 pcs of audio guide can be exported, |
|
| |
each audio guide can store 224 visitors’ data, it can import more than 680,000 visitors’ data at one time. |
|
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ |
|
| |
|
| ◆ User Data Analysis Software S-Analyst |
|
|
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ |
| |
| ◆ System Specifications |
| |
|
Wireless Transmitter(G-MP3T) |
Audio Guide(AG-600SR) |
|
| |
| RF frequency |
UHF846～870MHz/863～865MHz |
UHF845～875MHz |
| Oscillation type |
PLL Synthesized |
| Tunable channels |
38 Fixed channels+32 User channels |
| Channel setting & switching |
Manually select+RFID trigger control |
Wireless transmitter remote control |
| Frequency bandwidth |
24MHz/2MHz |
30MHz |
| Tunable steps |
25KHz |
| Frequency stability |
±0.005%(0～50)℃ |
| Modulation |
FM±45KHz deviation, compander system with pre-and de-emphasis |
| RF power output |
20mW |
— |
| Harmonic suppression |
>50dB |
— |
| Built-in microphone |
φ9.7mm,Uni-directional |
— |
| External microphone |
Support,3.5mm connector(Tip) |
— |
| Microphone gain |
-10dB～+20dB(step=1dB,31 steps) |
— |
| RF sensitivity |
— |
2uV(60dB S/N) |
| Antenna |
Built-in antenna |
External headphone cable is antenna |
| Intermediate frequency |
— |
Double-IF 110.6MHz/10.7MHz |
| Tour guide module SNR |
>80dB(A) |
| Total harmonic distortion |
<0.8%@1KHz ±45KHz modulation degree |
| Operating range |
>200m(Environment dependent) |
| MP3 file format |
8～48KHz sample rates,8～320 kbps bit rate |
| Memory capacity |
4GB(Optional 8GB,16GB,32GB) |
| Multi-language |
99 |
| Tracks number |
4096(per language) |
| Object name display |
Support multi-language title display |
| User data analysis |
Language,month,week,visiting time,scenic spot ranking |
| User data storage |
— |
224 users |
| Playback control |
Play/Pause,Previous/Next Fast,Forward/Rewind |
| Numeric keypad playback |
Support |
| RF trigger playback |
2.4GHz,0～100m (16 levels adjustable) |
| Infrared trigger playback |
— |
38KHz,0～10m (4 levels adjustable) |
| Passive RFID tag playback |
— |
13.56MHz,14443A standard (0～5cm) |
| Remote control playback |
— |
Support |
| Audio output |
3.5mm earphone socket(Ring) |
3.5mm stereo connector |
| Volume control |
32 levels electronic volume control |
Separate 32 levels audio guide/tour guide |
| Anti-theft alarm |
— |
Support |
| Audio-Video SYNC |
Support |
| Screen display |
128*64 dot matrix,OLED double color |
| Frequency response |
50～18000HZ |
| Signal-to-noise ratio |
96dB |
| Power supply |
Built-in lithium ion battery,3.7v/1020mAh |
| Operating time |
About 10～12 hours |
| Operating temperature |
-10～60℃ |
| Dimension |
138*49*16mm |
110*49*16mm |
| Weight |
75g(including battery) |
65g(including battery) |
|
|
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ |
| |
 |
|
 |
|
 |
|
 |
|
 |
|
|
RFT-6 |
|
IRT-6 |
|
L45A / B |
|
K96 |
|
EW100 |
|
|

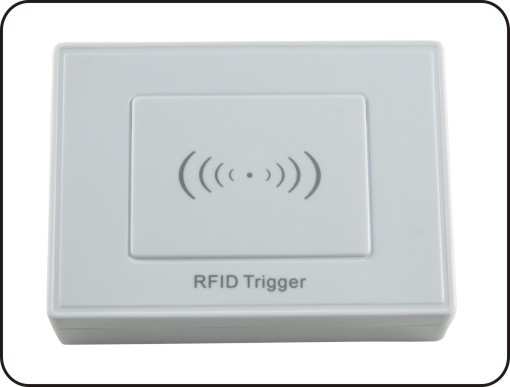

RFID Trigger |
|

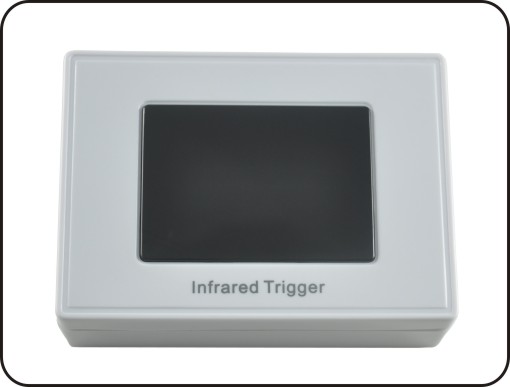

Infrared Trigger |
|

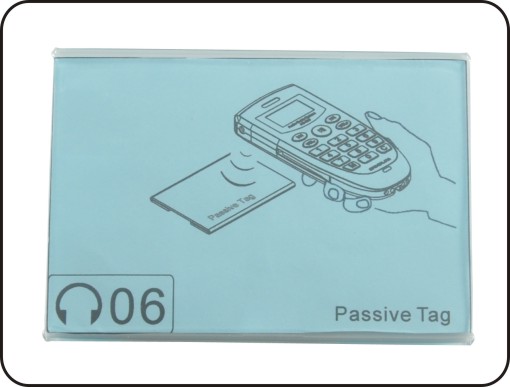

Passive Tag |
|
Display Card |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
| |
 |
|
 |
|
 |
|
 |
|
 |
|
|
WD-600 |
|
AVT-8 |
|
SC-02B |
|
SC-12B / SU-12B |
|
SCB-24BD |
|
|
Wireless Decoder |
|
Audio-Video Trigger
|
|

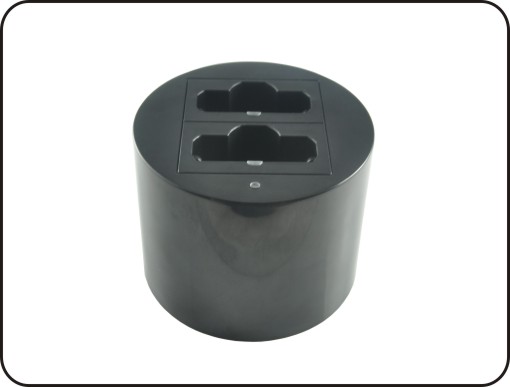

2-Slots Charger |
|

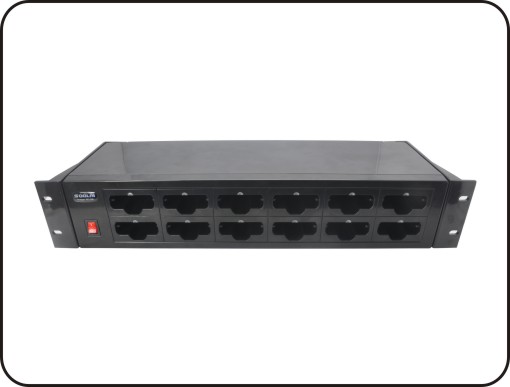

12-Slots Charger/
|
|

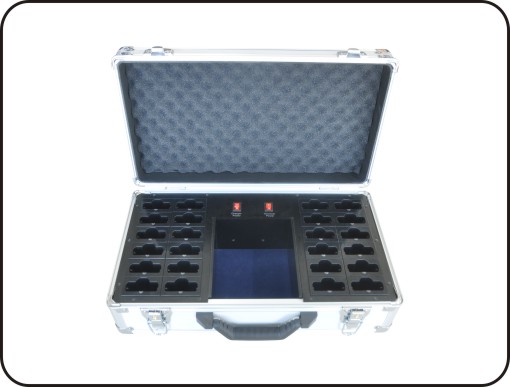

24-Slots Charging/ |
|
| 12-Slots Uploader |
Disinfection Case |
|
|
